Gedore 8112620 Puller for hydraulic implement 1.50, 520x200 mm 1.06/40

RRP: $734.07
Your Price:
$616.62 (You save $117.45)
SKU:
GE8112620
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.



Product Description

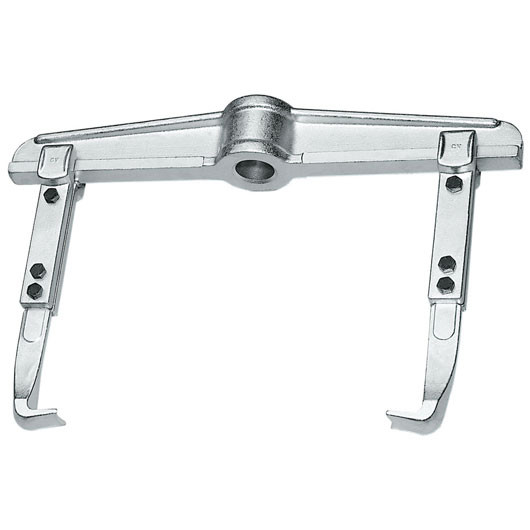

Puller for hydraulic implement 1.50, 520x200 mm

  • For the fast and damage-free removal of pulleys, wheels, ball bearings, etc.
  • Robust pattern, designed for rigidity and heavy duty use
  • By reversing the legs, this tool can be used as an internal or external puller
  • The reach may be increased both by using pulling legs in special lengths, and by using extensions

Specification:

  • Clamping spread -max- external pulling (a, a1): 520
  • Clamping spread -min- internal pulling (a2): 185
  • Clamping spread -max- internal pulling (a2): 600
  • Clamping reach: 200
  • Loading max. t: 10,0
  • Width of hooked foot (c): 36
  • Depth of hooked foot (d): 28
  • Thickness of hooked foot at tip (e): 6,5
  • Weight: 11,0
  • Item no.: 1.06/40
  • Code no.: 8112620
  • EAN: 4036976103755
