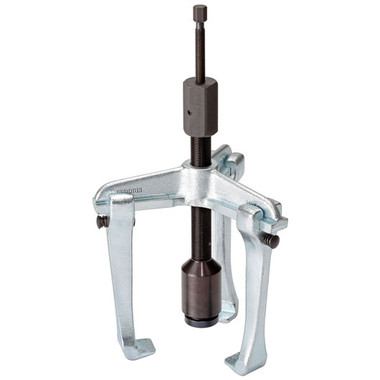

Gedore 2546566 Universal puller, hydraulic, 3-arm pattern, rigid legs with leg brake 160x70 mm 1.07/21-B-HSP1

RRP: $918.91
Your Price:
$771.88 (You save $147.03)
SKU:
GE2546566
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.



Product Description

Universal puller, hydraulic, 3-arm pattern, rigid legs with leg brake 160x70 mm

  • Even load distribution over 3 legs ensures secure grip and balanced pull
  • Rigid legs forged from one piece
  • Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
  • By reversing the legs, this tool can be used as an internal or external puller
  • Extra or replacement legs increase versatility
  • The pressure piece can be replaced by a tip and lengthened, as required.
  • The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal.
  • Also available with standard spindle - Model 1.07/B

Specification:

  • Clamping spread-max-external pulling (a,a1): 160
  • Clamping spread-min-external pulling (a1): 20
  • Clamping spread-max-internal pulling (a2): 220
  • Clamping spread-min-internal pulling (a2): 140
  • Clamping reach: 70
  • Loading max. t: 5,0
  • Loading max. N·m: 9
  • Hydraulic spindle: 1.06/HSP1
  • Width of hooked foot (c): 30
  • Depth of hooked foot (d): 24
  • Thickness of hooked foot at tip (e): 3,5
  • Weight: 4,1
  • Packing Unit (PU): 1
  • Target group: Industry
  • Item no.: 1.07/21-B-HSP1
  • Code no.: 2546566
  • EAN: 4036976126037
