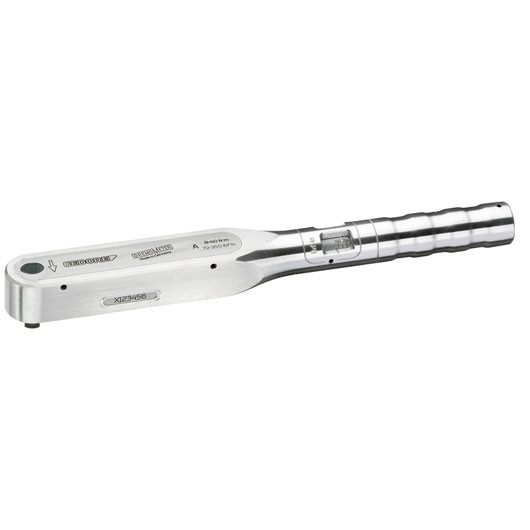

Gedore 2311321 Torque wrench DREMOMETER EK A+S 1" 600-1500 Nm 7581-01

RRP: $3,545.69
Your Price:
$2,978.38 (You save $567.31)
SKU:
GE2311321
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.



Product Description

Torque wrench DREMOMETER EK A+S 1" 600-1500 Nm

Technical advantage/function:

  • Pre-set value locking and safety device (A+S) eliminates the possibility of unintentional or manipulated adjustment, thereby representing more process reliability of the user
  • Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
  • Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
  • No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
  • Extremely low wear attributable to reduced forces in a unique lever mechanism
  • Forged lever chain from our own quality forge
  • Maximum precision even when subjected to extreme continuous use
  • Long life cycles and tool lives
  • Easy operation - fast and safe torque tightening
  • Single- and double-square drive for controlled bi-directional tightening

Use:

  • Controlled screw tightening in the range 6 - 3000 N·m
  • For use in almost all industrial manufacturing areas

Features:

  • With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards
  • Automatic short-path actuation with tactile impulse and audible signal
  • Dual scale with corresponding scale graduation (see table)
  • Type B, BC, C with push-button release
  • Pre-set DREMOMETER for serial production wherever the same value always needs to be applied

Specification:

  • Drive type: s EK A+S
  • Drive connector square (male): 1
  • Drive connector square (male) nominal size: 25,0
  • Range of work/measurement N·m (min/max): 600-1500
  • Range of work/measurement lbf·ft (min/max): 25 N.m
  • Scale divisions: 1.473,0
  • Distance middle of handgrip to pivot point: 40
  • Height: 30,0
  • Distance housing square-drive: 920,0
  • Length (L,L1): 1608
  • Weight: 10,800
  • Packing Unit (PU): 1
  • Target group: Industry
  • Item no.: 7581-01
  • Code no.: 2311321
  • EAN: 4002805930847
