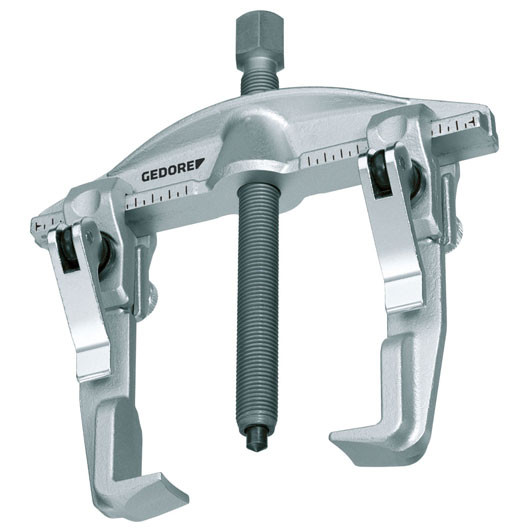

Gedore 1307827 Puller, 2-arm pattern 200x150 mm 1.04/2A

RRP: $350.45
Your Price:
$294.38 (You save $56.07)
SKU:
GE1307827
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.



Product Description

Puller, 2-arm pattern 200x150 mm

  • For the safe and quick removal of pulleys, wheels, ball bearings, etc.
  • Strong drop forged pattern
  • Due to the bending-moment reinforcement on its back face, the energy-saving design of the cross-beam means even stronger and safer pulling work
  • Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
  • The quick-action adjustment feature supports the energy-saving and fast operation
  • Spindle with replaceable ball and tip point
  • Upgradeable with hydraulic spindle (see table)

Specification:

  • Clamping spread-max-external-pulling (a,a1): 200
  • Clamping spread-min-internal-pulling (a2): 110
  • Clamping spread-max-internal-pulling (a2): 260
  • Clamping reach: 150
  • Loading max.t: 5,0
  • Spindle size (Thread x Lenght): G 1/2 x 210
  • Width Across Flat/Actuating Hexagon: 22
  • Width of hooked foot (c): 1.06/HSP1
  • Depth of hooked foot (d): 30
  • Thickness of hooked foot at tip (e): 18
  • Scale divisions: 3,5
  • Weight: X
  • Packing Unit (PU): 3,4
  • Target group: 1
  • Hydraulic spindle optional: Industry, Automotive
  • Item no.: 1.04/2A
  • Code no.: 1307827
  • EAN: 4036976107111
